Cold Galvanizing Compound for Corrosion Control
Available in aerosol and gallon containers
APPLICATIONS AND USES:

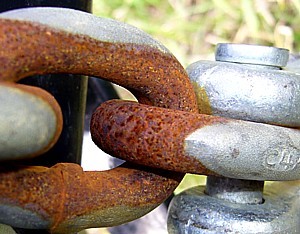

Marine use, cars, buses, trailers, trucks, air conditioning systems and fans, fencing, piping, sumps, water tanks, gutters, metal roofs and buildings. Structural steel bridges, buildings, off-shore rigs, steel windows, sheet metal and welds, garden furniture and tools, livestock equipment and farm machinery, electrical transmission towers. Used in harsh environments, including chemical and other corrosive situations (not recommended for immersion in, or spillage of, acid or alkali): chemical process piping and equipment, pulp and paper equipment, oil and gas production, processing and distribution equipment, water and sewage works equipment.
- 95% zinc content in dry film
- Can be used as a primer for most paints
- Lasting protection against rust and corrosion
- Complete weld repair qualities
- Galvanic action barrier comparable in protection to hot dip galvanizing
- Builds up slightly uneven surfaces prior to painting while protecting from rust and corrosion
- Easy brush or spray application
- Simple handling; single package epoxy system
- No pot life limitation
- Easy mixing - no hard settling of pigment
- Excellent wetting and penetration properties
- Flexible films with excellent adhesion
- Air dries quickly - set to touch in one hour
- Up to 5 mils DFT per coat
- Can be applied over a wider range of temperatures and relative humidities than many two-component epoxies
- Reduces maintenance costs; the years of protection for structural and equipment surfaces eliminates the need for constant scraping, wire brushing and repainting.
- Reduces production costs; eliminating the need to send parts out for hot dip, saving both time and money.
Steel: For best results, surfaces should be free from moisture, oil, grease, dirt, mill scale, rust, corrosion products, oxides, paint, and foreign matter. Abrasive blast surface to commercial grade per Steel Structures Painting Council Specification SSPC-SP6, "Commercial Blast Cleaning", or per NACE specification #3. If abrasive blasting is not feasible, remove loose mill scale, loose rust, and loose paint per specification SSPC-SP, "Power Tool Cleaning".
New galvanized surfaces: Remove all oil, grease and flux by solvent cleaning per Specifications SSPC-SP1, "Solvent Cleaning".

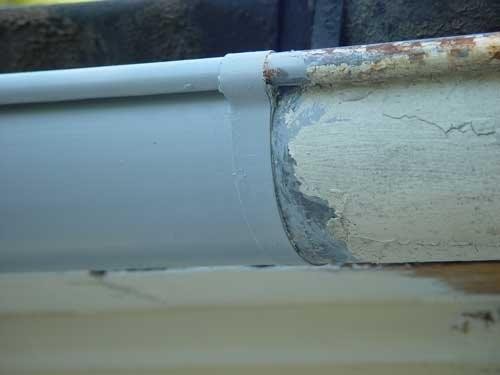

Weathered galvanized surfaces: Remove rust or foreign deposits by wire brushing per specification SSPC-SP2, "Hand Tool Cleaning", or power tool cleaning per Specification SSPC-SP3, "Power Tool Cleaning".
(For Galvax aerosol, follow the instructions on the can).
Stir Galvax thoroughly until the zinc dust content is completely dispersed. Galvax may be applied by brush, spray or roller. Airless spray is not recommended because of possible tip clogging. Thinning is not normally required.

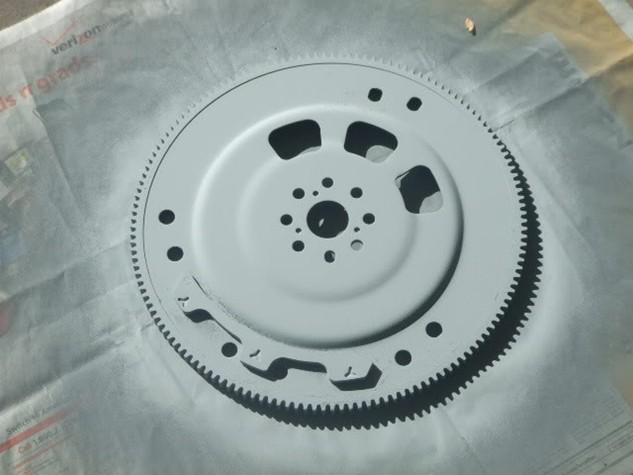

- Steel: Apply one coat 2.5 to 3 mils dry film thickness.
- New galvanized surfaces: Apply one coat 2.5 to 3 mils DFT.
- Weathered galvanized surfaces: Apply one coat 2.5 to 3 mils DFT.
- Rusted galvanized surfaces: Apply two coats at 2.5 to 3 mils DFT each, total system DFT: 5 to 6 mils. Allow 12 hours dry time between coats.
- At room temperature, Galvax sets to touch in 1 hr. and may be recoated after 12 hrs.
Brush: Apply after thorough mixing. If thinning is required, use up to 1 pint maximum per gallon of paint thinner. Mix thoroughly after thinner addition.
Roller: Apply after thorough mixing. Use rollers with short nap. Cross roll for uniform coverage. If thinning is required, use up to 1 pint maximum per gallon of paint thinner.
STORAGE AND CLEAN-UP:
Store in a cool, dry place, below 80ºF. Clean equipment with paint thinner.
- Cold Galvanizing Compound for metal
- Zinc Rich Primer to prevent rust
- Zinc Rich Spray Paint for Aluminum
- Spray Galvanizing for metal
- Galvanizing metal
- Compound Galvanizing Spray for metal
- Protection Rust coating for metal
